PCM 1794 Bluetooth receiver

I bought this device from eBay to try if I can get a decent sound out of my smartphone when used as a source connected wirelessly via Bluetooth to the audio system. This is the more direct way compared to the case when a smartphone is used only to control the playback by means of communicating with a dedicated streamer via the local network.

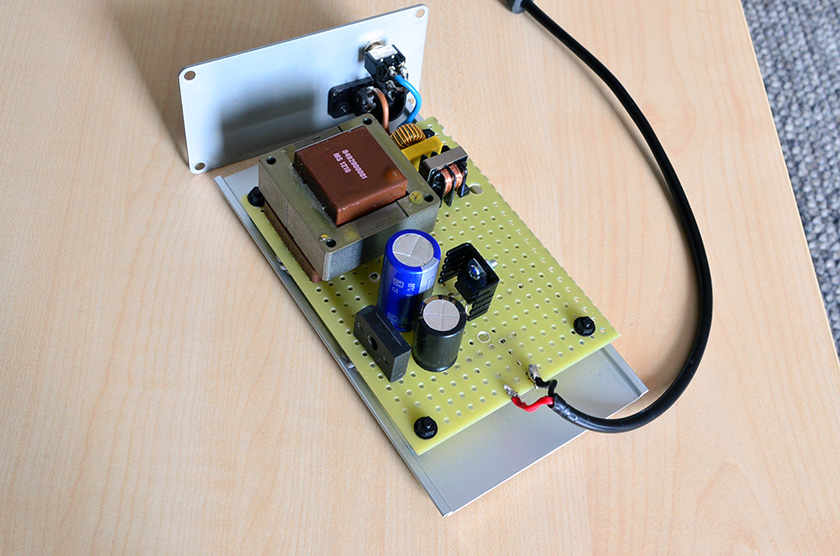

It comes without a power supply so the first thing I did was to build a 12 volt one based on L7812CV voltage regulator, two smoothing capacitors, an old 20 volt transformer and a simple EMI/RFI network.

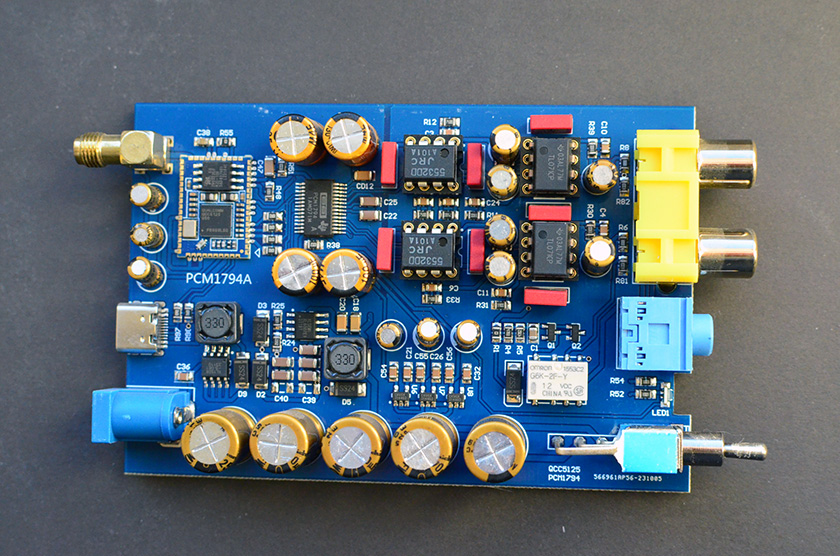

After the initial sound check it was clear that the digital part has some potential but the output stage together with the I/V conversion and the low pass filtering was ruining the sound. And there is no wonder about it for the analog stage relies on operational amplifiers surrounded by minuscule, built with SMD components filter networks. It looks like the implementation strictly follows the typical application circuit shown in the original Burr-Brown PCM1794 data sheet. According to it the balanced current outputs of the DAC are fed into 5532 dual operational amplifiers for the I/V conversion, then the outputs of each channel are passed to differential amplifier stages summing the signals into single-ended output and providing low-pass filter function.

The good thing is that all op-amps are installed on sockets to facilitate op-amp rolling but in my case to ease their removal and provide a convenient signal stealing point.

Circuit board modification

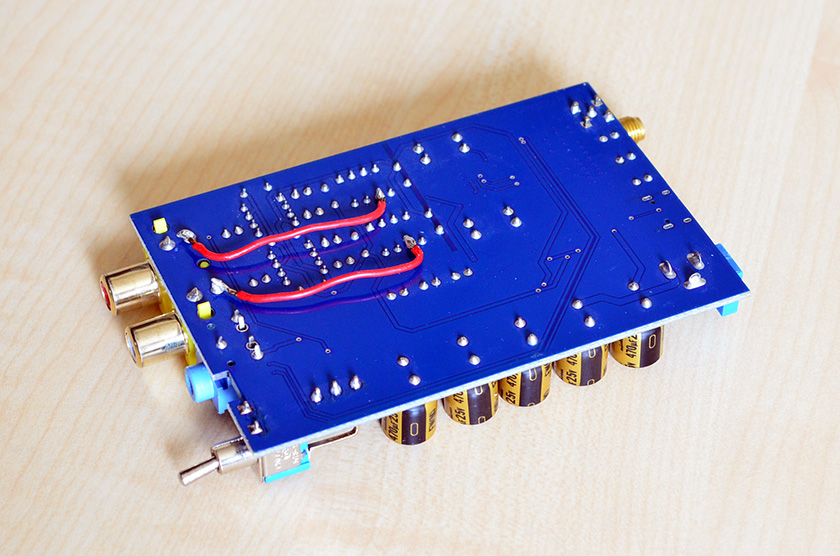

I decided for the straightforward passive I/V conversion based on a pair of resistors per channel. Since the DAC’s current outputs are balanced, both positive and negative output pins must be resistively coupled to ground in order to have a proper voltage conversion. For that purpose I used 150 ohms tantalum resistors soldered directly to the respective pins on the op-amp sockets. The positive output of each channel is then wired directly to the respective RCA connector’s hot pin on the back side of the PCB thus completing the balanced to single-ended conversion.

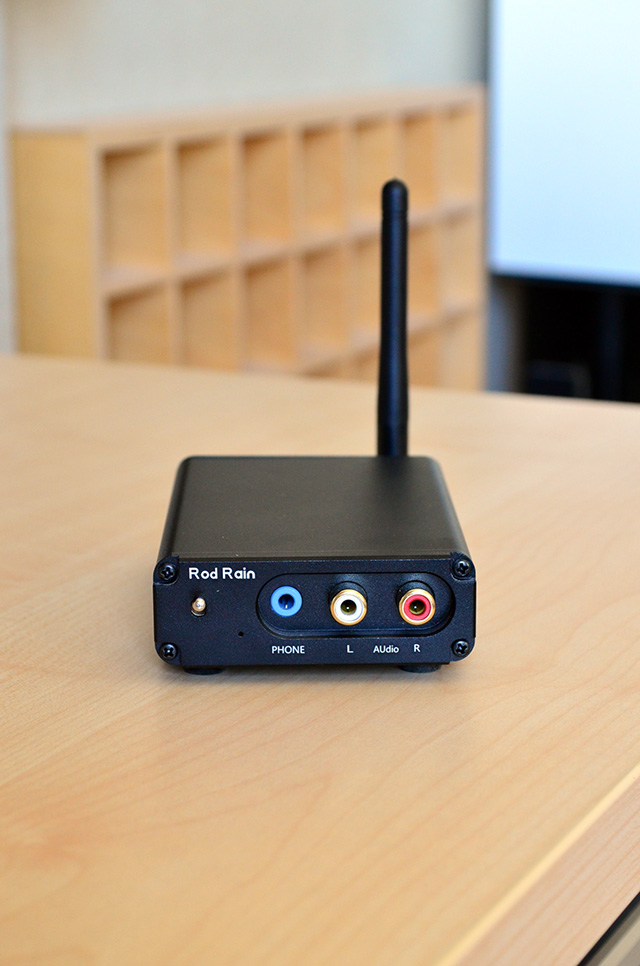

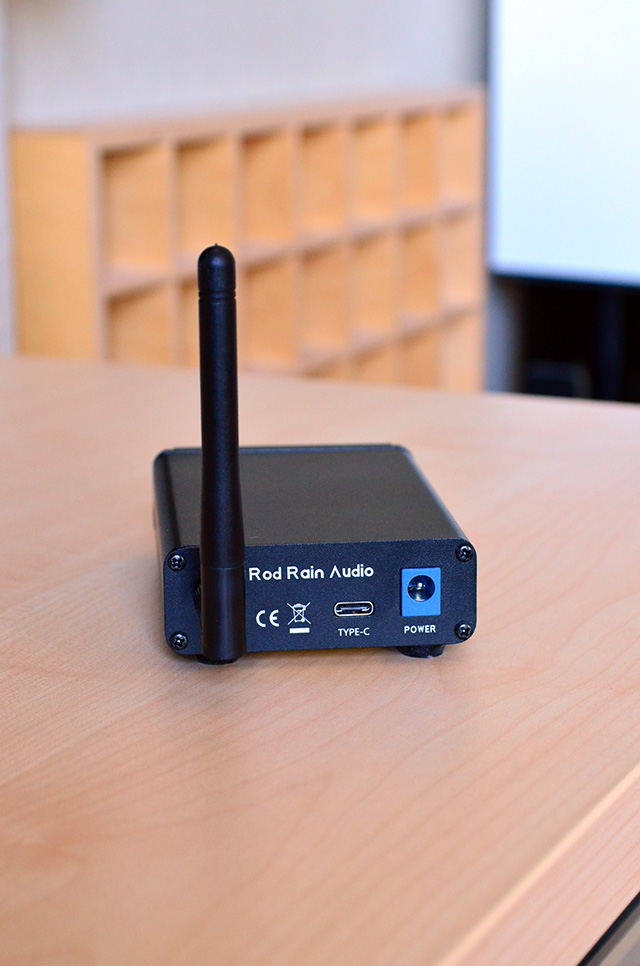

This kind of modification preserves the device integrity so that the original aluminium enclosure and connectors can be further used. The signal can now be taken directly from the RCA connectors by means of a standard interconnect cable and fed into a dedicated amplification stage. One can hear how the modified board sounds right away but the signal is way too weak to properly drive a preamp or integrated amplifier and still needs to go through a low-pass filter to cleanup the residual high frequency images.

Low-pass filter

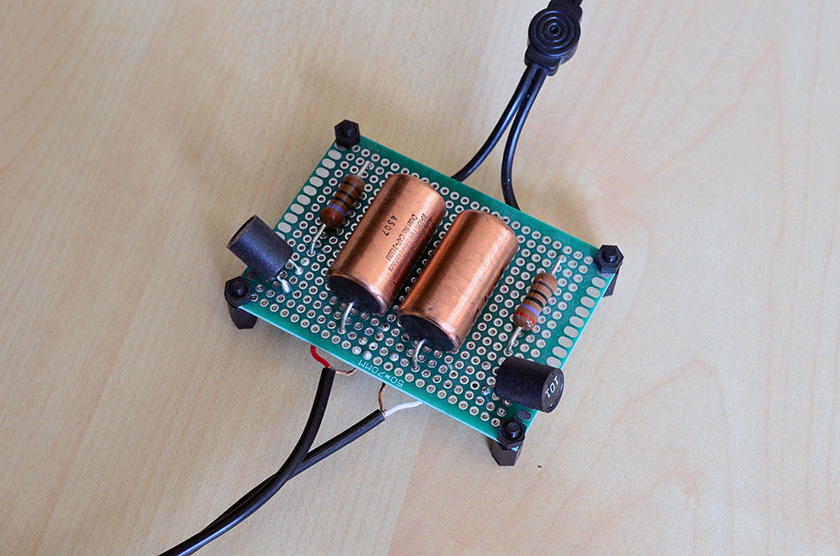

Since the PCM1794 DAC is performing 8x oversampling the sonic artefacts produced due to the d/a conversion are pushed quite up in the frequency spectrum thus requiring a gentle roll-off filter with rather high cut-off frequency. After plenty of experimenting I arrived at a second order low-pass LC filter consisting of a 270 Ohm resistor and a 0.1 mH inductor in series followed by a 2.2 nF capacitor parallel with the load. Built on a separate prototyping board and equipped with RCA connectors this filter can be easily inserted between the Bluetooth receiver and the output stage which facilitates the assessment of its effects on the presentation.

As gentle as it is the low-pass filter endows the sonic images with certain clarity, differentiation and density which makes for more realistic portrayal of the reproduced music and consequently for more satisfying listening experience.

Vacuum tube output stage

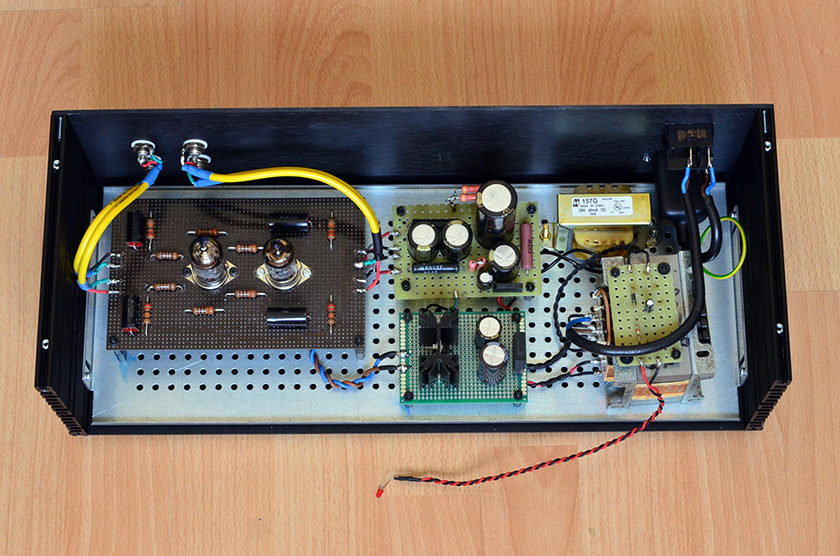

That’s the most time and cash consuming part to build. I decided to try the output stage circuit based on a pair of 6922/ECC88 tubes in SRPP configuration. This circuit derives from early Audio Note DAC production and has seen various implementations across the do-it-yourself community. The stage uses 220 kOhm termination resistors across the signal input and output, 330 Ohm cathode resistors at both upper and lower triodes and .47 uF signal coupling capacitors at the output. I also added .22 uF input coupling capacitors to block the DC offset present at the DAC outputs and a pair of 1 kOhm grid stopper resistors. The stage expects 180 volts of clean high tension power to perform as intended.

In opposite to the original PSU schematic which relies on tube rectification I decided to use what I had at hand and went with a solid state bridge rectifier fed by an Audio Note TX005 transformer with 290 volts secondary winding. Filtering is choke input utilising a 30H 40 mA one followed by a 22 uF capacitor, then 2 kOhm resistor followed by a 220 uF reservoir cap paralleled with a 22 kOhm bleeder resistor, afterwards a pair of 3.9 kOhm resistors branches it off into left and right section and each section terminates with a 22 uF capacitor. Since the SRPP circuit requires the tube heaters to be elevated in order to not exceed the maximum heater-to-cathode voltage ratings the PSU features a 50 volts biasing tap as well.

Listening impressions

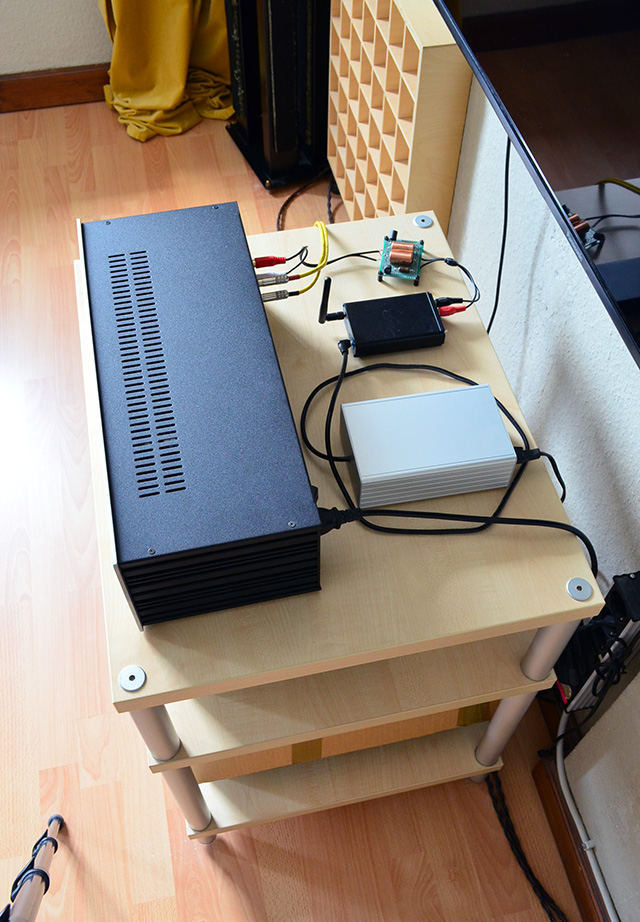

I am very pleased with the sound of this Bluetooth receiver, it allows me to fully immerse in the listening experience and enjoy a very life-like presentation. In the smartphone’s settings I have chosen the available LDAC Bluetooth audio codec developed by Sony for it has the greatest transmission bandwidth and to my ears clearly outperforms the rest. To stream music I use YouTube Music app and although the streaming quality is capped at 256 kbps utilising lossy audio codecs like AAC and Opus I don’t miss anything. The music swings with great dynamics and authority and I am easily able to forget myself. Differences in record quality of varying program material are easy to spot without being disturbing. Of course some of my favourite CDs are already transferred and stored on my smartphone in lossless WAV audio format and I can tell that there is even more nuance when listening to uncompressed music but whatever the differences are, they are not that essential, the music is still able to transcend the format limitations and bring great joy provided that it is skilfully recorded.

Happy listening!
